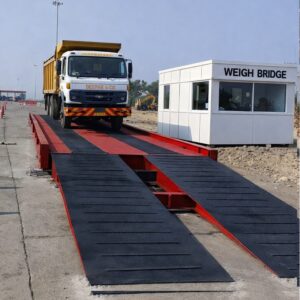

Mobile / MODULAR TYPE WEIGH BRIDGE 100 Ton
| Model | Size in Metter | Capacity | Load Cell | Load Cell Type | Platform |
| WICFW | 16 x 3 | 100 MT | 30MT X 8 | Digital | FULLY ELECTRONIC PIT LESS TYPE MODULAR WEIGHBRIDGE WITHOUT RAMP. |
| PRODUCT SPECIFICATIONS | |
| Make | WEIGH INDIA COMPANY |
| Brand | WICOM |
| Model | WICFW |
| Weighing Capacity | 80 MT |
| Accuracy | 10 kg |
| Printing Net weight , Character width of ticket entry | |
| Power Supply | Ac 230 v |
| Items in Pack | 1 Piece ( Full Structer +Load cells +Printer+ IT +Display ) |
| SMS feature | User can switch to SMS option any time with modem |
| Security | Full Security with password ,no tempering |
| APPLICATIONS:
|
Grain, Pharmaceuticals, Industries ,Road weigh bridge |
Specifications for Overall weigh Bridge
| Parameters | Descriptions | ||
| Type OF Weigh Bridge | Fully Electronic PIT LESS Type Road Weigh Bridge | ||
| Pan Size | 12 M x 3 M | ||
| Verification Interval | 10 kg | ||
| Load cell | 30 Ton Capacity 8 Nose | ||
| Power Supply | 220 V +- 10% AC | ||
| Junction Box | 8 Load cell Input and 1 Out Put | ||
| Display Outer | 2 “ Red LED DISPLAY Outer Side | ||
| Printer | EPSON/ TVS / WIPRO 80 Column Dot Matrix Type | ||
| Key Board | USB Computer Keyboard | ||
| UPS | 30 Minutes Backup, 600 Output , 230V Ac -10%, 50 Hz ,1% Output | ||
Specifications for Load Cell
| Parameters | Descriptions |
| Type of Load cells | Double Ended Shear Beam Ball type Load Cell. |
| Model | : DESB-BL-1 |
| Material of Construction | High Nickel Alloy Steel |
| Load cell Cap: | 2 nos. each Load cells 30 tone
|
| load cell Weight | Approx – 12 kg |
| Nominal Sensitivity | 2 +- 0.2 ( mv/V) |
| Excitation Voltage | a- 10 V DC
b- 25 VDC Maximum |
| Resistance | Input 700 ohm , Out Put 700 ohm |
| Breaking Force | 300% of full capacity |
| Protection | IP 68 |
| Temperature Range | -20 °C to +60 °C |
IT INDICATOR- with Mobile SMS & USB Port Facility
| Parameters | Descriptions |
| Keyboard Port | USB |
| USB Port | YASS – Pen-drive in the USB port |
| Report Format | Excel Sheet through pen drive |
| Memory | Up to 2 Laks |
| Printer port | Centronics port for Dot-matrix Printer |
| SMS feature | YASS , with Additional Mobile Phone |
| Repot | RST Wise/Date Wise also Installation report |
| Calibration | Smart , single step or multiple steps , Multi step Smart calibration |
| Codes | Yes , all entry through code possible, Mobile No entry with party code |
| Power Saving Feature | YASS |
| Printing Net weight , Character width of ticket entry | |
| Slip Print Report | Date , Product ,Party , Suppler ,Vehicle Wise Reports |
| Extras Display | Yes – Jumbo Display |
FEATURE OF IT INDICATOR- Standard Model (Software)
| Parameters | Descriptions |
| Port for Keyboard: USB | Eliminates the use of out dated PS-2 keyboard, whose availability will be a problem in future |
| USB Port for Pen-Drive | Insert Pen-drive in the USB port & dump data into pen-drive any time. No need to physically connect Indicator& Computer. |
| Excel Format Report | View weighment data directly in Excel format on any computer using Pen-drive. |
| Memory 2 lakes records | Higher memory eliminates the need o f data erasing to accommodate new weighment records |
| Repot options | (RST Wise/Date Wise) (Full/Complete/Pending) (Filtered Report-As per Data entry field) (General Time). |
| SMS feature | User can switch to SMS option any time, just need to attach Modem with the indicator. SMS can be sent to any Mobile No entered during data entry. This Mobile no can be of customer or Driver |
| Calibration | Calibration with random loads sequence And Multi step Smart calibration. Higher weighment accuracy can be achieved at lower & higher weights both. |
| Power Saving Feature | Available. LCD with backlight control & LED brightness control features helps in saving electricity, especially when Indicator is running on Battery back-up. |
| Security | Full Security with password ,no tempering |
Product Description
ABOUT “WICOM “ MODULAR TYPE WEIGHBRIDGE:

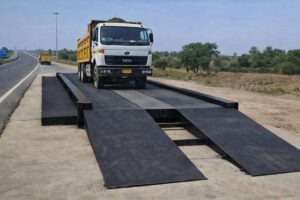

REDUCTION IN LOAD DISTANCE :OUR weighbridge can be easily install, dismantled and re install within a short span of time, it can be constantly transfer to nearest area of use . This will help in reducing lead distance, reduction of handling cost, manpower, and appreciable improvement in productivity.
EASY TO MAINTAIN : As OUR is a rugged design and the system has surprisingly ease of operation under most harsh condition. The down time due to break down is almost nil and hence the loss due to break down is also almost nil.
DIFFERENCE: OUR modular design which comprises of a fully welded modules rating of the system due to loose nut & bolts is totally avoided. Such type Being a modular design the length of the weighbridge can be extended or reduced suiting the site conditions and so no need to keep separate leads to inconsistency and inaccuracy in weighing.
WARPING OF PLATES : The top deck plate is fully welded and well supported by cross beams within a span of 1 meter; hence they are rigid and sturdy avoiding warping or bending of plates. This avoids replacement. Top deck plate, saving lot of time, money and work output. Since it is rugged the life span is also very high.
EASY TO MOVING . This mobility help in reduction of inventories and capital cost.
BESTFOR ACCURACY : OUR Product is a highly innovative system, as we as use state of art electronic and structural design. Consistent accuracy is a basic necessity of any weighbridge. Even little inconsistent measurement will result in loss of several hundred kilograms of materials everyday, which can amount from Rs.1000/ - to 10,000/- to any amount depending the value of material.
SOME FEATURES OF MODULAR WEIGHBRIDGE IN COMPARISON WITH THE NORMAL PITLESS TYPE WEIGHBRIDGES :

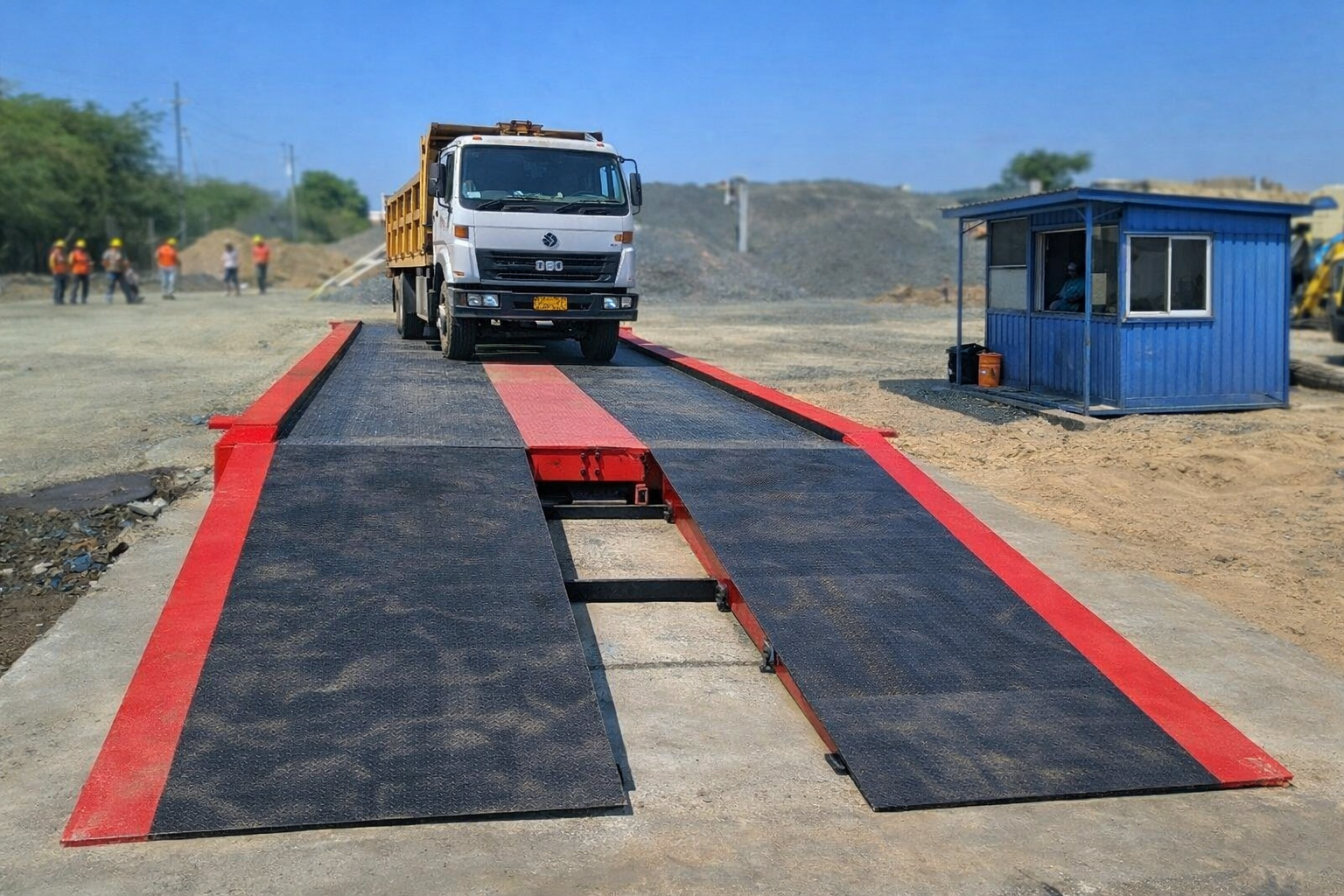

This weighbridges can be easily dismantled and re-erected in a new location in a Short span of time. Transportation of the modules can be arranged through a normal Truck.
weighbridges are modular type. Hence they have the advantage of future up-gradations by simply adding a module or two to have a longer platform. This is not possible in conventional type of weighbridges.
Conventional type weighbridge has 2 main longitudinal members. Whereas the modular type weighbridge has 4 main longitudinal members. Structure is more strong, yet sleek.
Weighbridges are fitted with load cells which supports the structure through a special arrangement. This ensures the structure swings in order to avoid the shock loading transferred directly to the load cell, on a dynamic force created by a moving truck over the platform and thereby load cell accuracy is sustained for a longer period.
In weighbridges, the chances of getting rusted is less as the modules are seamlessly welded and rain water and slush cannot find their way to the under chassis of the weighbridge which will definitely reduce the maintenance cost.
Weighbridge is modular in structure, fully welded and strong to take care of the designated load. The loose parts such as girders, plates and transoms in a conventional weighbridge and the main girders in a surface mounted type have a relative movement due to cyclic loading of truck weighing, though they are held by fasteners. In the long run, this effect leads to wear and tear of the parts and the same need replacement. weighbridge comprises of modules which are fully welded and have no loose parts, hence the effect of cyclic loading does not cause any problem and thereby keeping y maintenance cost to a minimum.
The Pit less weighbridge with I beams and Plates or a surface mounted type has a minimum 4 load cells support in all corners and the I beams r has long span and hence is subject to bending in the middle. This bending give effects to the load cells out put of its vertical position, resulting in load loss due to angular force over the load cell.
In a typical surface mounted type weighbridge, the structure is supported with load cells through good quality load cell assembly which holds the structure rigidly and thereby the shock load due to dynamic force created by a moving vehicle is directly transferred to the load cells which not only reduces the life span of load cell, but also leads to erratic performance of load cells in time period.
This weighbridge does not require an elaborate civil foundation work as in the case of a Conventional weighbridge. Weighbridge could also be installed permanently on a hard surface with a concrete mat or on M.S. Plates under the load cell points and the ramps.
All the weighbridges available Pit or Pit less type muster quires civil work foundation of minimum cost of Rs. 1 lakhs to Rs.5 Lakhs depend of length of weighbridge. This could be minimized to a great extent by installing modular type weighbridge. Our modular weighbridge could be instal led as a pit mounted or pit less type permanently in a site if required at site . We hope that y choice of adapting a latest technology in weighing solution is much brighter and hence, we kindly request you to consider offer favorably.
