Smart , single step or multiple steps , Multi step Smart calibration
Codes
Yes , all entry through code possible, Mobile No entry with party code
Power Saving Feature
YASS
Print
Printing Net weight , Character width of ticket entry
Slip Print Report
Date , Product ,Party , Suppler ,Vehicle Wise Reports
Extras Display
Yes – Jumbo Display
FEATURE OF IT INDICATOR- Standard Model (Software)
Parameters
Descriptions
Port for Keyboard: USB
Eliminates the use of out dated PS-2 keyboard, whose availability will be a problem in future
USB Port for Pen-Drive
Insert Pen-drive in the USB port & dump data into pen-drive any time. No need to physically connect Indicator& Computer.
Excel Format Report
View weighment data directly in Excel format on any computer using Pen-drive.
Memory 2 lakes records
Higher memory eliminates the need o f data erasing to accommodate new weighment records
Repot options
(RST Wise/Date Wise) (Full/Complete/Pending) (Filtered Report-As per Data entry field) (General Time).
SMS feature
User can switch to SMS option any time, just need to attach Modem with the indicator. SMS can be sent to any Mobile No entered during data entry. This Mobile no can be of customer or Driver
Calibration
Calibration with random loads sequence And Multi step Smart calibration. Higher weighment accuracy can be achieved at lower & higher weights both.
Power Saving Feature
Available. LCD with backlight control & LED brightness control features helps in saving electricity, especially when Indicator is running on Battery back-up.

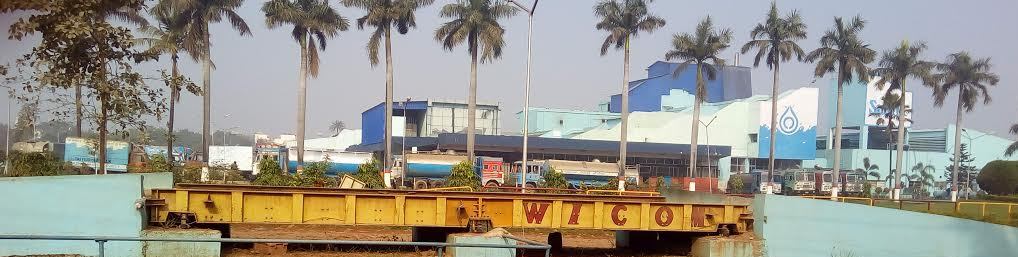

A pit less type fully electronic weighbridge is a surface-mounted truck scale designed without requiring underground excavation, making it ideal for rocky terrains or sites where pit construction is costly or challenging.
Model
Size in Fit
Size In Metter
Capacity
WICFW
30 x 10
9 x 3 M
60 MT
Key Features
Platform elevated above ground level with ramps on both sides for vehicle access, eliminating water logging and pit maintenance issues.
Uses hermetically sealed load cells, low-resistance shielded cables, and weatherproof junction boxes for accuracy up to 0.02% and overload capacity of 150%.
Sturdy steel structure (IS 2062 Grade) with Windows-based software for reliable weighing, often fully assembled and tested at the factory.
FEATURES : Built-in SMS, Memory 2 lakhs records , USB Port for Pen-Drive , Smart CalibrationRepot options- (RST Wise/Date Wise) (Full/Complete/Pending) (Filtered Report-As per Data entry field) (General Time).
Advantages
Easier installation and maintenance since all components are accessible from above ground.
Suitable for industrial use in space-constrained or hazardous areas, with capacities from 5 to 300 tons and sizes up to 20m x 3m.
No ramps needed in some public setups, but requires more overall space due to approach ramps (typically 25 feet long).
Common Applications
Primarily used for truck weighing in non-hilly areas, public weighbridges, or where soil conditions prevent pits, offering cost savings on civil work.
Additional information
Weight
12000 kg
